PoseTrack 2017, 2018, COCO Dataset 키포인트 관절 비교

Joint index

index	2017	2018	index diff	COCO
0	Right Ankle	Nose	13, 0	Nose
1	Right Knee	Head Bottom	12, 1	Left Eye
2	Right Hip	Head Top	14, 2	Right Eye
3	Left Hip	Left Ear	_, 3	Left Ear
4	Left Knee	Right Ear	_, 4	Right Ear
5	Left Ankle	Left Shoulder	9, 5	Left Shoulder
6	Right Wrist	Right Shoulder	8, 6	Right Shoulder
7	Right Elbow	Left Elbow	10, 7	Left Elbow
8	Right Shoulder	Right Elbow	7, 8	Right Elbow
9	Left Shoulder	Left Wrist	11, 9	Left Wrist
10	Left Elbow	Right Wrist	6, 10	Right Wrist
11	Left Wrist	Left Hip	3, 11	Left Hip
12	Head-bottom	Right Hip	2, 12	Right Hip
13	Nose	Left Knee	4, 13	Left Knee
14	Head-top	Right Knee	1, 14	Right Knee
15		Left Ankle	5, 15	Left Ankle
16		Right Ankle	0, 16	Right Ankle
number of max joint	15	17		17

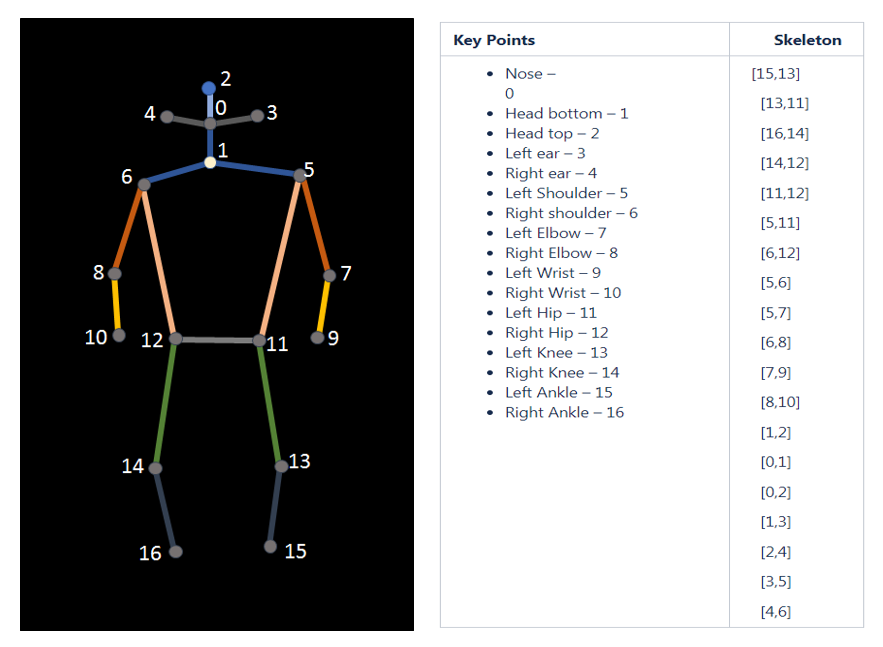

2018 Pose Track key points annotation

2017 - Readme 참고

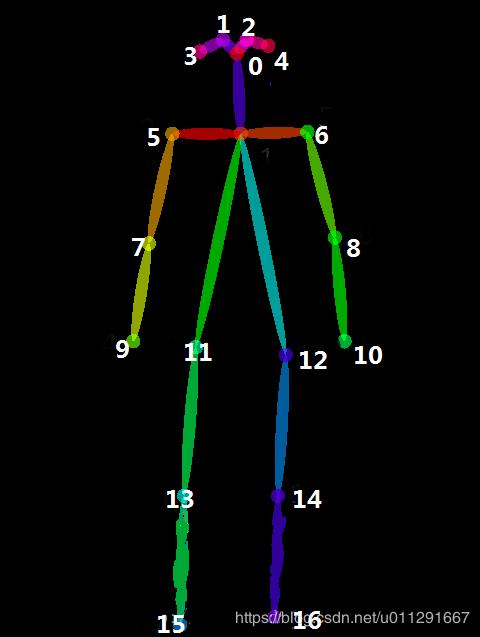

COCO Keypoint

"nose", "left_eye", "right_eye", "left_ear", "right_ear", "left_shoulder",
"right_shoulder", "left_elbow", "right_elbow", "left_wrist", "right_wrist",
"left_hip", "right_hip", "left_knee", "right_knee", "left_ankle", "right_ankle"
